NodalSet is a versatile tool designed for precise positioning of the camera and lens over the nodal point, eliminating parallax...

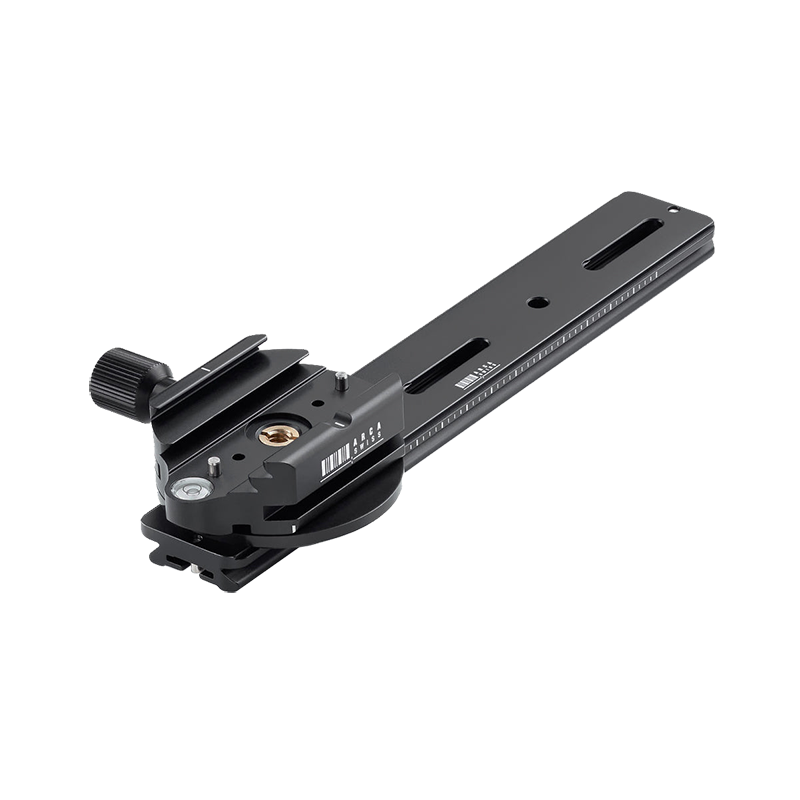

Arca-Swiss NodalSet 200 mm

NodalSet is a versatile tool designed for precise positioning of the camera and lens over the nodal point, eliminating parallax errors when capturing multiple images.

• Precise nodal point adjustment for distortion-free panoramic images
• Use directly with top panning tripod heads for accurate single-row captures
• Compatible with our Pan System accessories for multi-row captures
• Features a target bullseye level on the quick release for accurate leveling
• Quick release can be manually rotated 90 degrees to accommodate a lens foot
• Choice of quick release - Classic, flipLock®, or monoball®Fix
• Length: 7.9 in / 200 mm
• Dovetail width: 26 mm monoball®Fix
• Weight: 0.7 lb / 0.3 kg
• Construction: anodized aluminum

    Use NodalSet with monoball®Fix compatible quick releases only. Mount it in the lower dovetail channel of ARCA-SWISS Classic or flipLock® quick release. Visit the Quick Release info page for details on our system. Note: Not compatible with quick releases from other brands.


    Buy the Arca-Swiss NodalSet 200 mm
